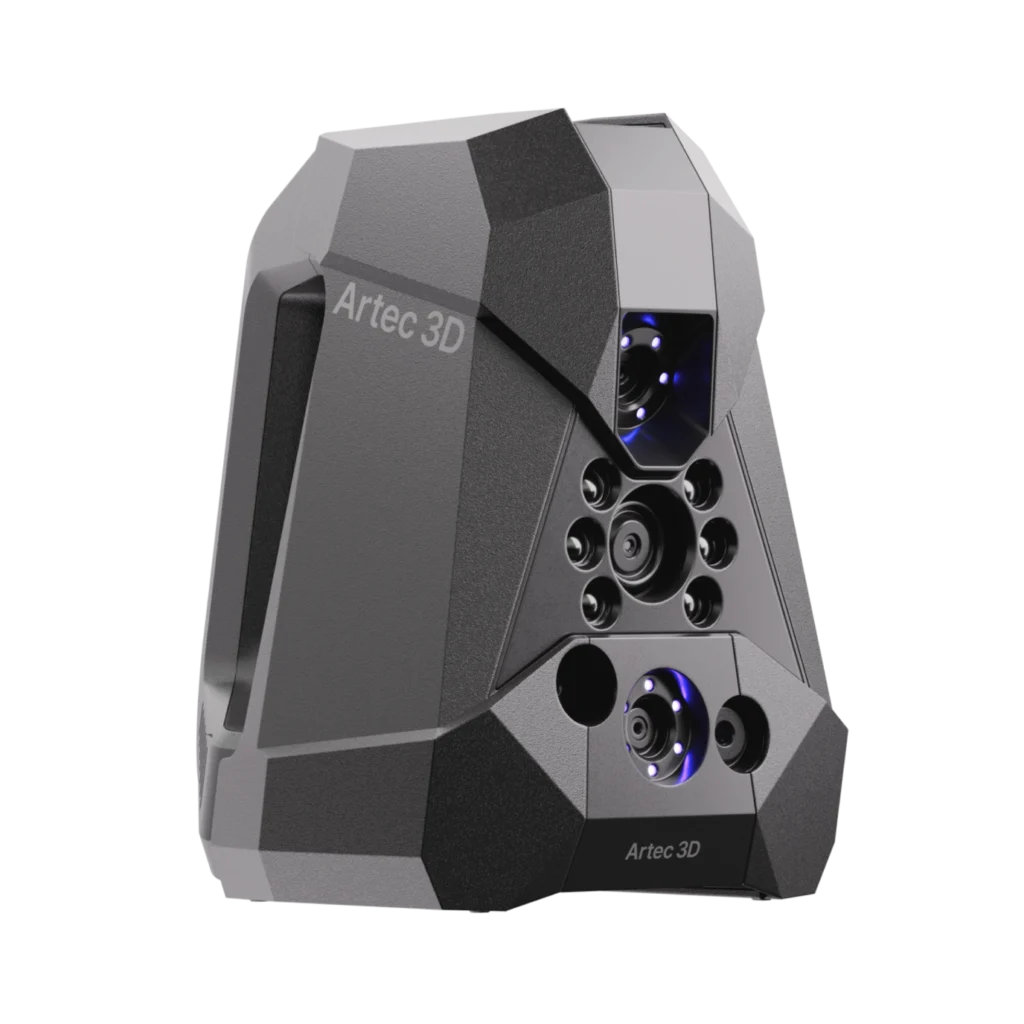

Artec Neo

Meet Artec Neo, a hybrid, wireless handheld 3D scanner engineered for metrology-grade accuracy of 0.025 mm.

Tolerance-driven 3D scanning for inspection and reverse engineering

Artec Neo covers virtually any reverse engineering and inspection task with a single device: scan with targets where tolerances must hold, capture target-free when speed matters, and get true-to-life color and fine 0.05 mm resolution to document surface condition — all in one scan, one dataset.

Tethered or fully wireless, Artec Neo gives quality and engineering teams the freedom to work anywhere. Every unit is verified in Artec’s independent metrology laboratory in accordance with VDI/VDE 2634 Part 3 — so you can make critical measurement decisions with confidence.

Technical Specifications

Accuracy

0.025 mm + 0.035 mm/m

Metrology-grade accuracy over distance

Resolution

0.05 mm

Fine surfaces rendered in high detail

Texture

5 MP, full color

True-to-life textures

Scanning speed

8 mln points/second

Complete high-resolution surfaces in seconds

Deep holes & hidden geometry

Confident capture inside channels, recesses, and hard-to-reach areas

Target-free scanning

Up to 0.05 mm accuracy, no preparation required

Robust tracking

Start from any point, re-acquire instantly

Consistent results

Reliable data regardless of operator skill

Artec Neo Key Features

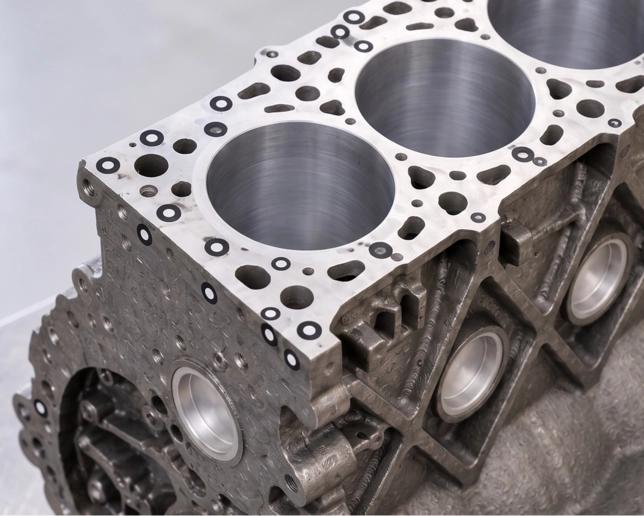

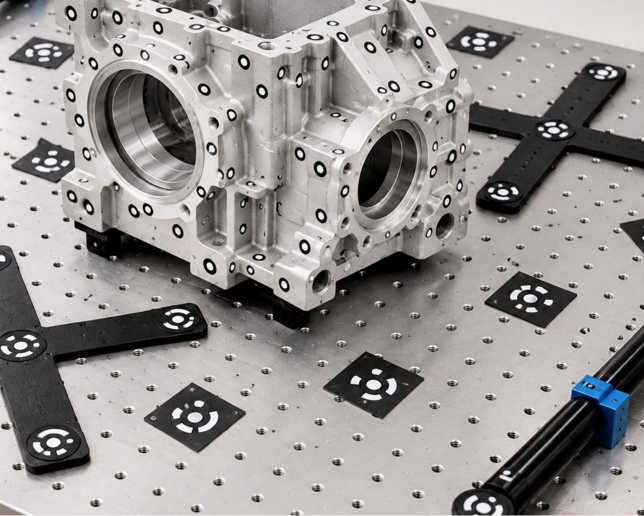

Achieve metrology-grade accuracy everywhere: full target coverage.

Targets across the whole part keep every frame anchored — with Artec Neo reaching 0.025 mm + 0.035 mm/m volumetric accuracy over the entire surface.

Capture complete objects with metrology-grade accuracy on toleranced features.

Targets go around the features that perform a function — datums, fits, interfaces — anchoring accuracy exactly where it has to hold, with other surfaces captured target-free with full detail and color.

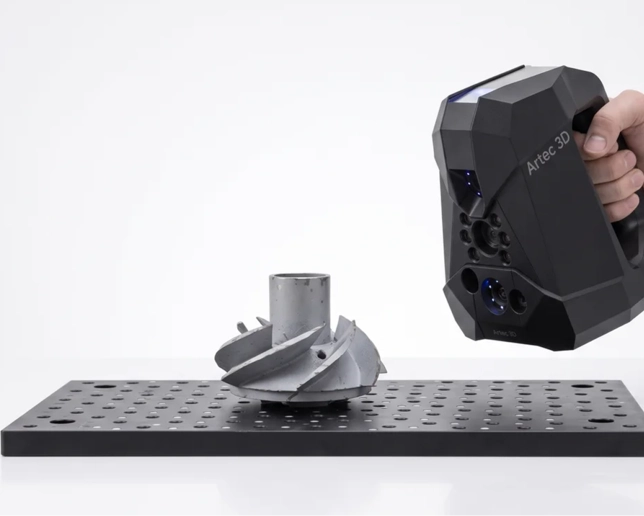

Inspect critical surfaces without covering them with targets.

Targets go on the fixture, not the part — the setup carries the metrology-grade accuracy framework, with no error accumulation across the measurement.

Even deep channels and passages, where targets can’t be applied, are measured as-is to be compared against CAD.

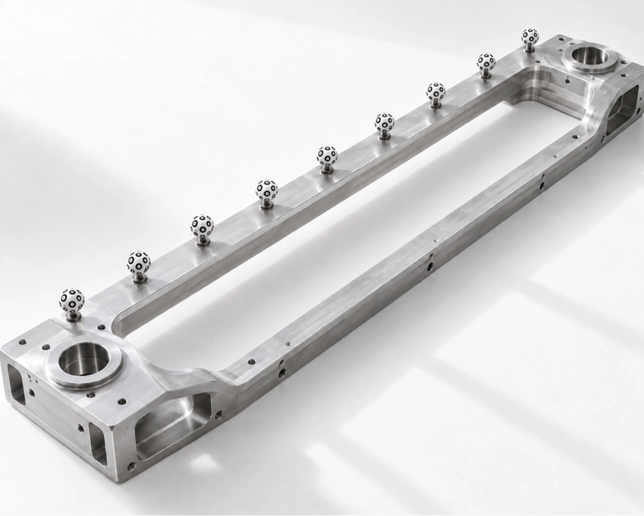

Measure features relative to each other — without scanning everything in between.

A target trail links connecting points into one common frame of reference — scan the trail first, then just the features that matter. Capture vital engineering data — flange-to-flange distances, bolt-circle orientation, and mounting-point coordinates over several meters with metrology-grade accuracy.

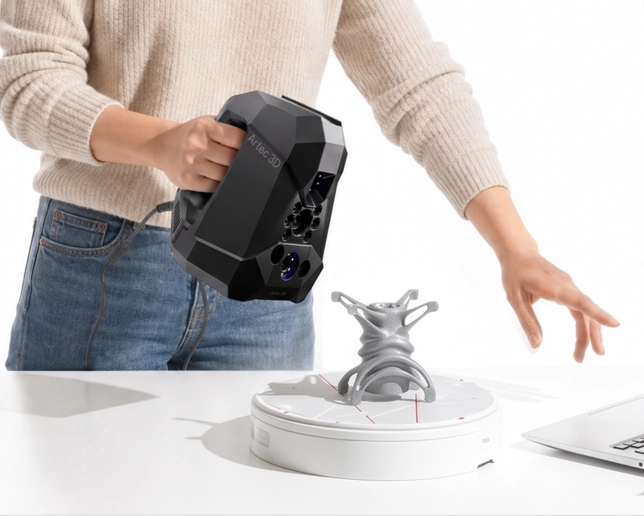

Accurate and fast capture, no targets at all.

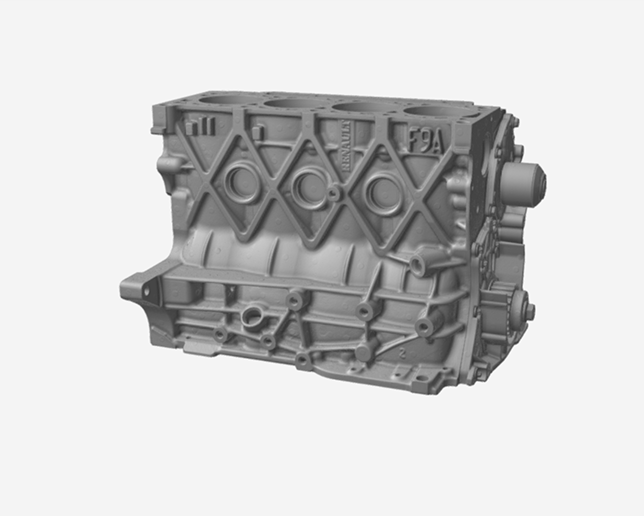

Scan entire objects in minutes with up to 0.05 mm accuracy and resolution — no target placement or surface preparation required. Get clean meshes ready for CAD, as well as full-color part scans carrying numbers, casting marks, and surface condition.

High resolution & accuracy. Half the lead time.

Artec Neo excels at capturing fine detail in ultra-high resolution while maintaining metrology-grade accuracy, without slowing down like standard laser scanners.

Built for Precision, Freedom & Productivity

Scan Without Limits

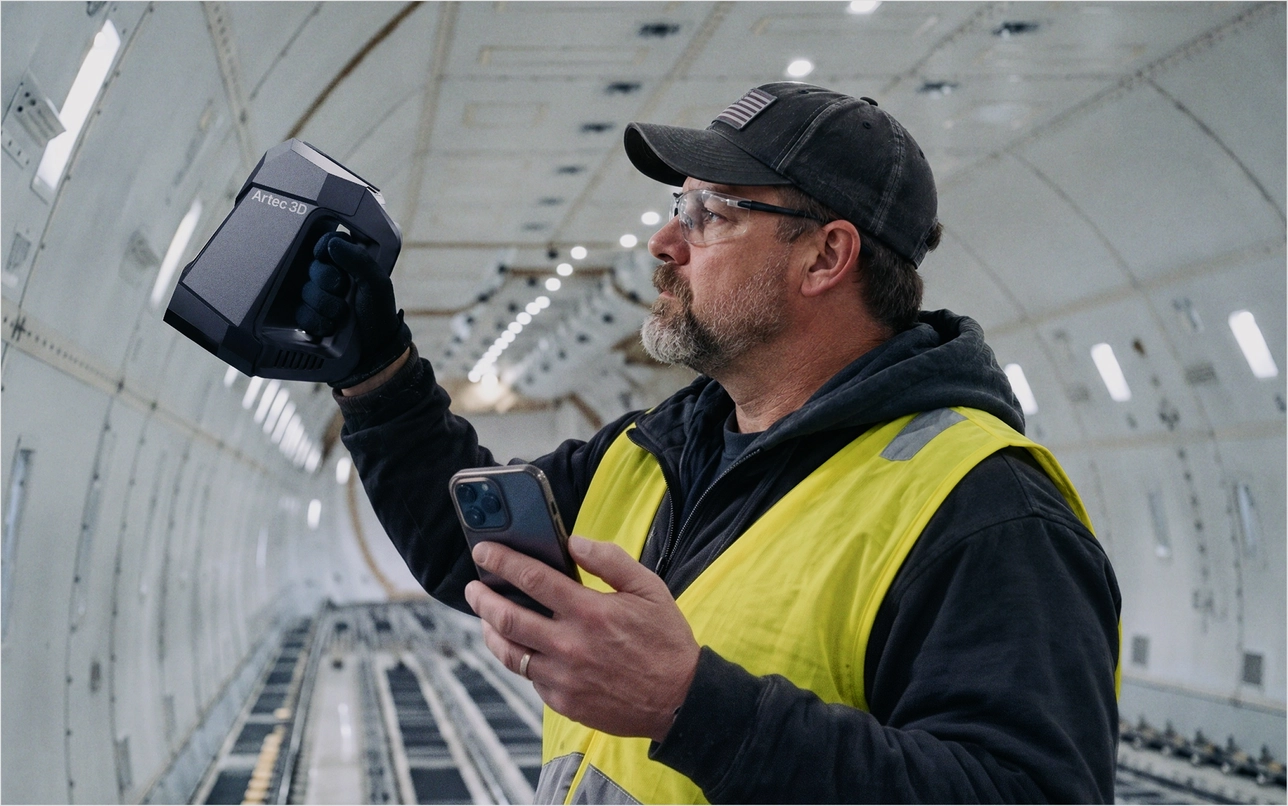

With a built-in battery and Wi-Fi, Artec Neo enables continuous scanning without cables, making it ideal for on-site inspections, elevated structures, and confined spaces.

40–50 minutes of continuous scanning
2 batteries included
6-meter Wi-Fi range

Certified Accuracy You Can Trust

Tested per international standards

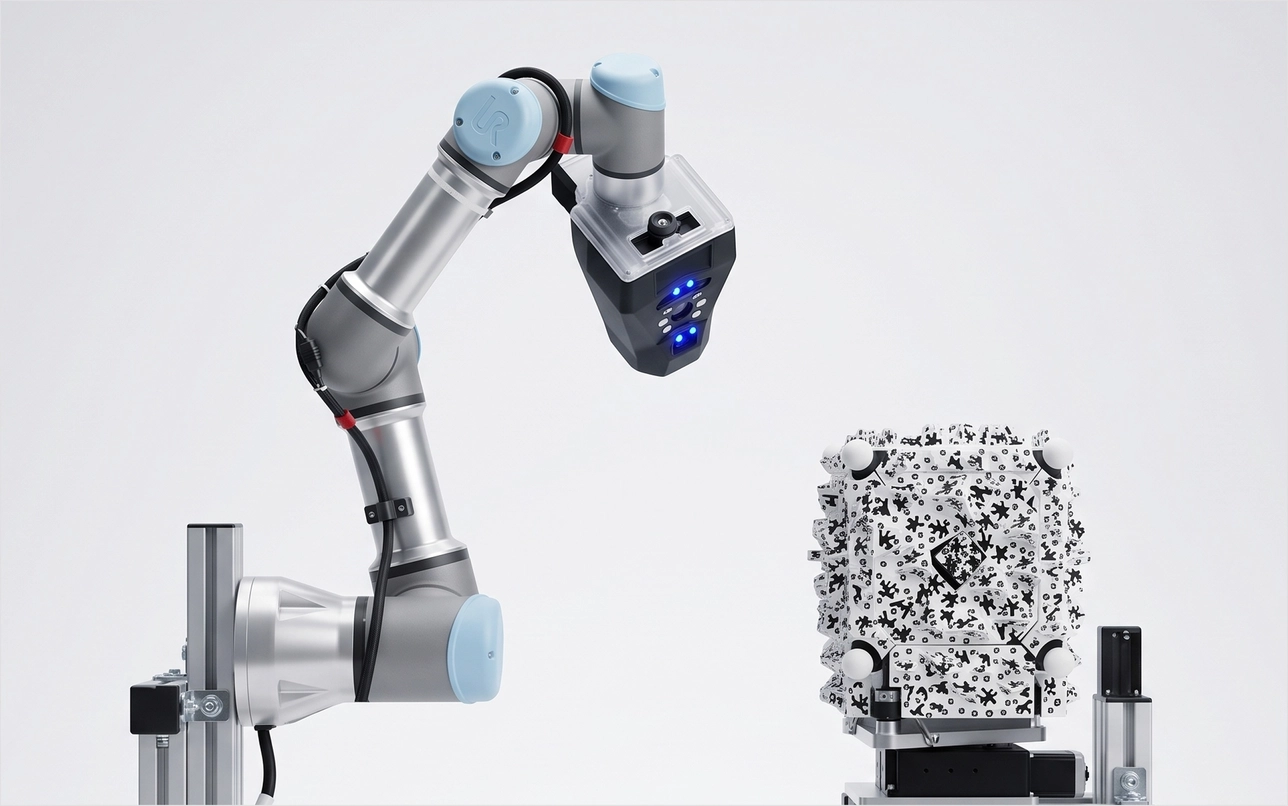

Acceptance testing is done per VDI/VDE 2634 Part 3, using robot-driven trajectories and internationally traceable reference objects.

Independent laboratory

Artec’s dedicated metrology laboratory, operating according to ISO/IEC 17025 principles, with safeguards for impartiality.

Per-unit certificate

Every Neo is individually calibrated and verified before shipment, and ships with its own accuracy certificate.

One Ecosystem. Complete Workflow.

Artec Neo works natively with Artec Studio — software that further amplifies its capabilities. Capture, process, analyze, and combine scan data in one ecosystem.

Scan-to-CAD toolkit

Extract key geometry, create 2D sections, and generate CAD surfaces from polygonal meshes.

Inspect your data

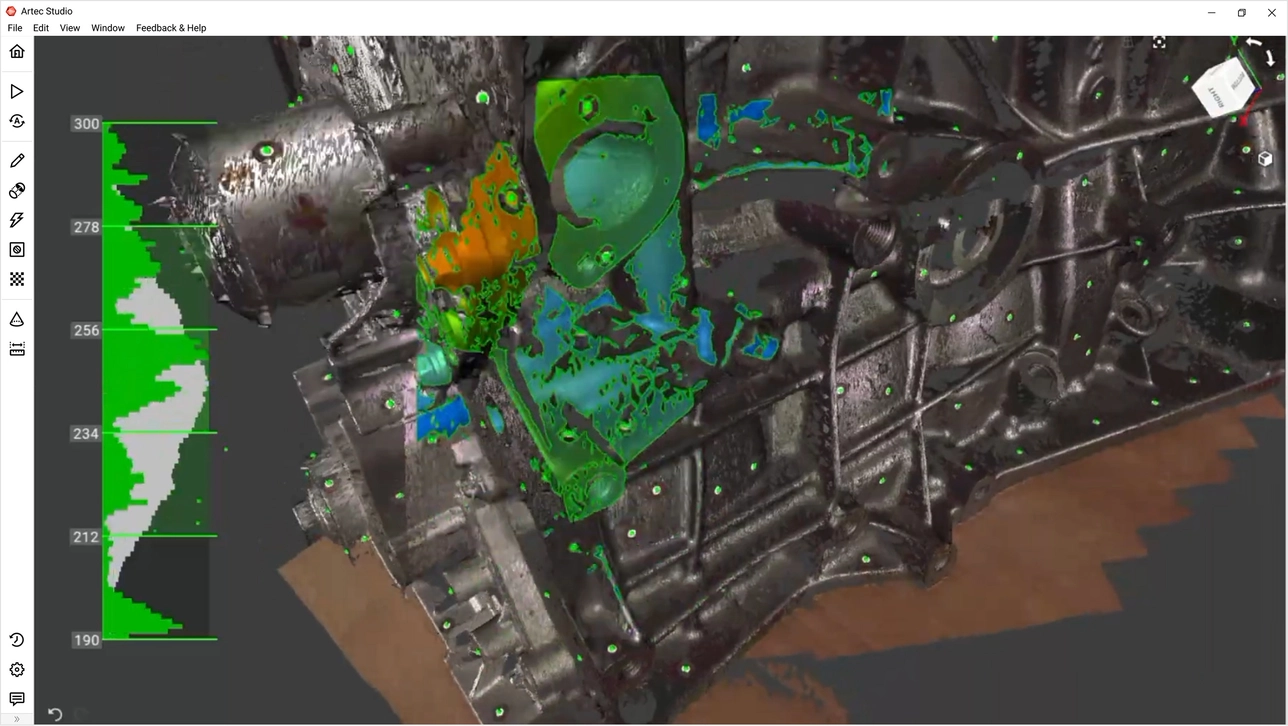

Perform mesh-to-CAD and mesh-to-mesh deviation analysis with measurement and distance mapping tools.

Third-party integration
Export scan data to Geomagic, PolyWorks, SolidWorks, and other industry-leading software for reverse engineering and inspection.

Download

Artec 3D Scanner Benefits

Easy and Fast Operations

Safe to use
Artec 3D Scanner uses invisible VCSEL structured light projection, making it totally safe for scanning people, as well as inanimate objects. Because of VCSCEL light technology, scanning is possible even in outdoors conditions

Just point and shoot
No need preparation such as pasting targets and calibration, just simply plug in the scanner and point it around the object as you would with a video camera. Point scanner closer to object to zoom in for sharper details

Scan fast with geometry and texture tracking
Artec 3D Scanner uses built-in accelerometer, gyro and compass to know its position in real world. Together with reading of scanned object’s geometry and color, fast and smooth scanning is possible even for large featureless object

SDK integration and scanners bundling
Artec SDK allows you to integrate Artec scanners into your own custom solutions free of charge. Also, to capture larger area, several scanners can be bundled and synced together

Applications for Artec 3D Scanners

Industrial design and manufacturing

Reverse engineering
Quality control
Rapid prototyping
Aerospace

Healthcare

Orthopedics
Prosthetics
Plastic surgery
Custom wheelchairs
Dentistry
Hearing Aids

Science and education

Research
Training
Online museums
Forensic

Art and design

Heritage preservation
Architecture
CGI
Fashion

Additional Benefits

Special price for 3D software bundle

When purchasing Artec 3D scanner, enjoy special discount for 3D design and inspection software from Autodesk Manufacturing Solution, 3D System Geomagic and EGS Leios

Attractive offer for schools and universities

Education institutes are entitled to purchase Artec scanner at special EDU pricing, which includes free 20 licenses of Artec Studio 3D software, 2 years hardware warranty and software upgrades

Smart, easy scan processing software

Smart Autopilot mode in Artec Studio software provides new and experienced users the most seamless workflow to process 3D scanning data and produce reliable results. Also enjoy the fastest processing speed yet in latest Artec Studio version

Faster 3D scanning vs. laser scanners

Artec handheld 3D scanners capture entire surface area per scan, while laser scanners capture only the small area over which the laser line pass. Artec scanners are also cost effective, portable and require no target marker pasting

Compare Artec 3D Scanners

Metrology-grade 3D scanning solution

High-resolution 3D scanner for industrial applications
Metrology-grade accuracy up to 0.025 mm + 0.035 mm/m
Resolution up to 0.05 mm
Full-color texture capture
Scanning speed up to 8 million points/sec
Target-based and target-free scanning
Built-in battery and Wi-Fi connectivity
Native integration with Artec Studio

Large-scale LiDAR mapping solution

Multi-modal SLAM LiDAR scanner
Handheld, drone, vehicle & robot deployment
AI-powered autonomous navigation
Survey-grade SLAM positioning
Up to 1.9 million points/sec acquisition
Mapping accuracy up to ±10 mm
Change detection capability ±5 mm
LiDAR range 0.5 m to 300 m
360° × 290° field of view
Class 1 eye-safe laser
GPS-denied environment operation
IP65 dust & water resistant
512 GB onboard storage
Weight only 1.57 kg

Medium to large object 3D scan

Handheld scanner
Cableless onboard processing
VCSEL invisible structured light
Up to 80 FPS scan capture rate
3D point resolution up to 0.25mm
3D true accuracy +/- 0.1mm
Working distance 0.35m to 1.2m
Scan area up to 843 × 527 mm
Built-in touch screen control
Scan object size 0.1m to 11m+
