Geomagic Design X
Ultimate 3D scan-to-CAD software
Input 3D scan data and cleanup mesh.
Create feature-based solid models from scan data.
Automate exact surfaces from organic scan data.
Fast and reliable reverse engineering workflow.
The ultimate 3D scan-to-CAD solution
Geomagic Design X, the industry’s most comprehensive reverse engineering software, combines history-based CAD with 3D scan data processing so you can create feature-based, editable solid models compatible with your existing CAD software.
Design X Key Features

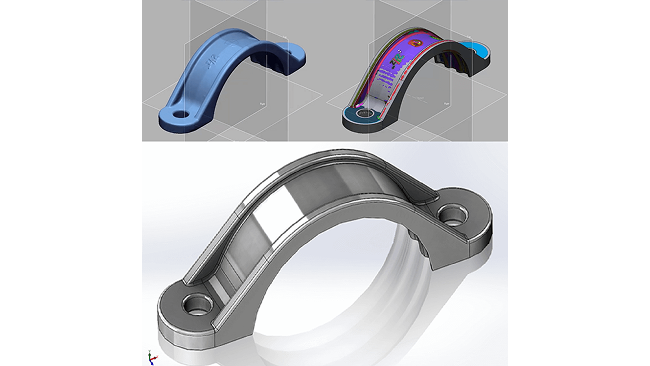

Powerful feature-based 3D scan-to-CAD
- Standalone CAD software purpose-built for converting 3D scan data into high-quality feature-based CAD models
- Combination of automatic and guided solid model extraction, incredibly accurate exact surface fitting to organic 3D scans, mesh editing and point cloud processing

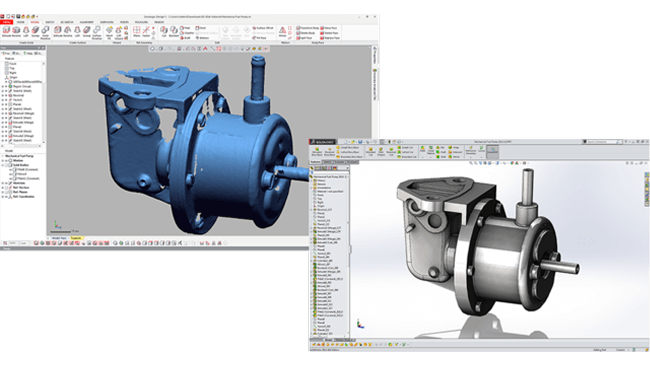

Works seamlessly with existing CAD software
- Connects directly to popular CAD software
- Unique LiveTransfer™ technology allows Design X to transfers complete models, including feature trees

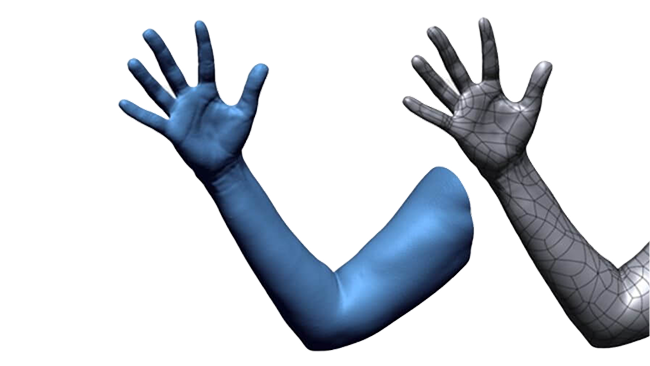

Easy-to-use mesh repair and exact surfacing
- Easy-to-use mesh repair tools deliver rapid hole filling, smoothing, optimizing, re-wrapping and polishing tools such as Smart Brush
- Exact surfacing creates products that cannot be designed without reverse engineering, such as organic customized parts that require a perfect fit with the human body.

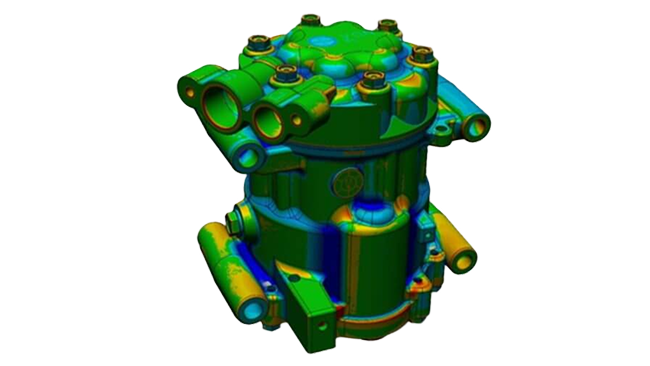

Automated Accuracy Analyzer™
- Automated Accuracy Analyzer™ tools compare and validate surfaces, solids and sketches against original scan data.
Design X Modules

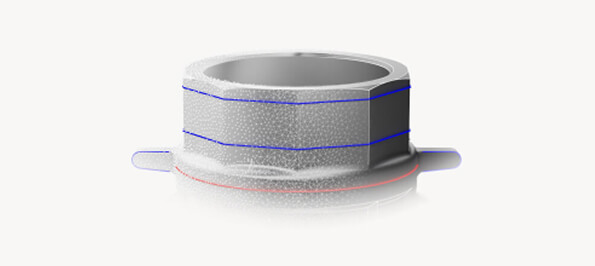

Design X GO
Start reverse engineering parts with easy-to-use software.
- – Everything you need to start your reverse engineering journey.
- – Work with data from any scanner.
- – Point cloud and mesh editing.
- – Basic solid and surface modelling tools.
- – Export parametric models direct to your CAD package with LiveTransfer.
n enhanced toolset that integrates directly with your scanner to help you create usable CAD, faster.
– All functionality from Go, and…
– Enhancements to all toolsets, ideal for more complex parts.
– Direct integration with several third-party equipment for scanning and probing.
Design X PLUS
An enhanced toolset that integrates directly with your scanner to help you create usable CAD, faster.
– All functionality from Go, and…
– Enhancements to all toolsets, ideal for more complex parts.
– Direct integration with several third-party equipment for scanning and probing.
Design X PRO
Complete capabilities to reverse engineer absolutely anything.
-Everything in Go and Plus, and…
– Guided and automated wizards for data processing and modelling.
– Advanced point cloud/mesh repair and editing.
– Extensive surface and solid modelling tools.
– Advanced alignment tools and wizards.
Videos
Geomagic Design X – Pro – Plus and Go – Introduction
Geomagic Design X – Process 3D Scans for Additive Manufacturing
