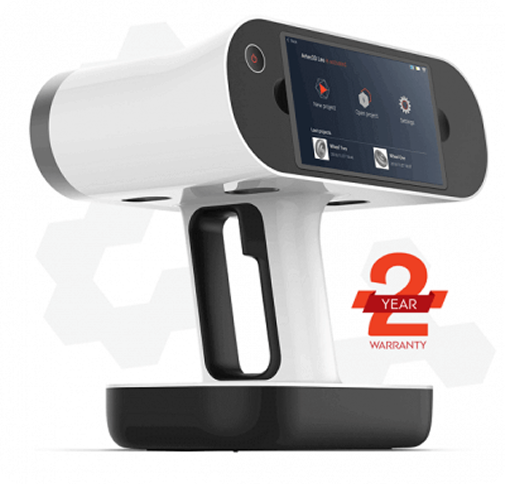

Artec Leo

Artec Leo gives you absolute freedom in 3D scanning – there are no cables attached to this standalone scanner! This is achieved through on board processor, touch screen display, built in battery, custom electronics and lenses to provide state of the art portability and speed in hand-held 3D scanning.

Easy 3D scanning: see your object in 3D directly on the HD display

The first 3D scanner to offer onboard automatic processing, Artec Leo (https://www.artec3d.com/portable-3d-scanners/artec-leo) is able to provide the most intuitive workflow, making 3D scanning as easy as taking a video. As you scan your object, see the 3D replica being built in real time on Leo’s touch panel screen.

The 80 frames per second 3D reconstruction rate makes Artec Leo the fastest professional handheld 3D scanner on the market. Furthermore, with its large field of view, Artec Leo can 3D scan and process even large objects and scenes fast and accurately. And for even greater precision, users can point the scanner nearer to the object to pick up intricate detail.

Tags: 3D scanner / Handheld / No need markers / Colour capture / Software development kit / Medium and large object scanning / Battery operated / Cableless / Built-in display screen.

Designed for usability

With a built-in battery, touch panel screen and wireless connectivity, Artec Leo takes handheld 3D scanning to the next level. Have complete freedom of movement when you scan, stream video to a second device via Wi-Fi or Ethernet, if an additional display is needed, and upload your data at the touch of a button.

Add to these features a carefully balanced, ergonomic design, devised to make 3D scanning in one hand easy and comfortable, and you have a next-generation professional 3D scanner, built with usability in mind.

The smartest 3D scanner on the market

Artec Leo contains state-of-the-art technologies, including the NVIDIA® Jetson™ platform, which is the scanner’s own internal computer, featuring

Quad-core ARM® Cortex®-A57 MPCore CPU
NVIDIA Maxwell™ 1 TFLOPS GPU with 256 NVIDIA® CUDA® Cores
a built-in 9 DoF inertial system – accelerometer, gyro and compass

which allows the scanner to understand its position and environment; and a two-in one optical system designed to spec for the most exact texture to geometry mapping.

Artec Leo Key Features

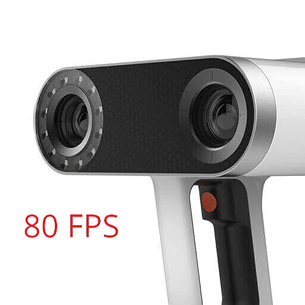

Fastest capturing speed 80 fps

Up to 80 frames per second 3D reconstruction rate makes Artec Leo the fastest professional handheld 3D scanner on the market. Complete your scanning faster

High true accuracy 0.1mm

Capture object shape at up to +/- 0.1mm true accuracy, and high 3D point resolution up to 0.25mm. Suitable for metrology and reverse engineering use. Also scan in 2.3MP brilliant texture color

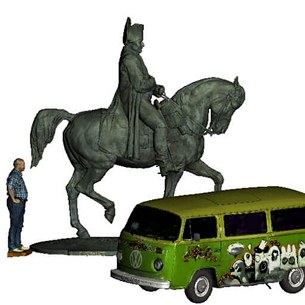

Scan medium to large objects

Make full 1-to1 scale 3D scans of medium to large objects, with the flexibility to zoom in closer to capture higher details and zoom out further to capture bigger area. 3 times the capture volume of Eva

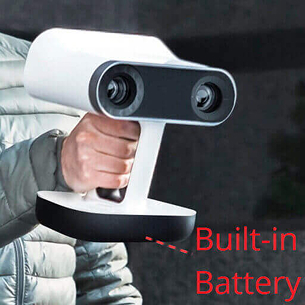

True portability with cableless design

With a built-in battery, touch panel screen, on-board processor and wireless connectivity, Artec Leo takes handheld 3D scanning to the next level of movement freedom

Case Studies

3D model of Egyptian mummy (Video)

See an Egyptian mummy in 3D inside and out. Discover a new 3D modeling dimension that combines the best of computed tomography (CT) and textured 3D scanning. An ancient Egyptian mummy from the Rosicrucian Egyptian Museum in San Jose, California was 3D scanned using a CT scanner and Artec 3D optical scanner to produce an accurate color 3D model.
Video (1:05 min.)

Applications for professional handheld 3D scanning (Video)

View famous examples of how Artec 3D scanning is used in real life situations
Video (1:14 min.)

Download

Artec 3D Scanner Benefits

Easy and Fast Operations

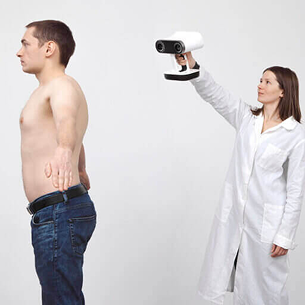

Safe to use
Artec 3D Scanner uses invisible VCSEL structured light projection, making it totally safe for scanning people, as well as inanimate objects. Because of VCSCEL light technology, scanning is possible even in outdoors conditions

Just point and shoot
No need preparation such as pasting targets and calibration, just simply plug in the scanner and point it around the object as you would with a video camera. Point scanner closer to object to zoom in for sharper details

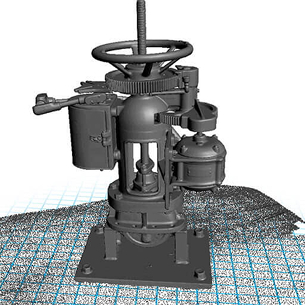

Scan fast with geometry and texture tracking
Artec 3D Scanner uses built-in accelerometer, gyro and compass to know its position in real world. Together with reading of scanned object’s geometry and color, fast and smooth scanning is possible even for large featureless object

SDK integration and scanners bundling
Artec SDK allows you to integrate Artec scanners into your own custom solutions free of charge. Also, to capture larger area, several scanners can be bundled and synced together

Applications for Artec 3D Scanners

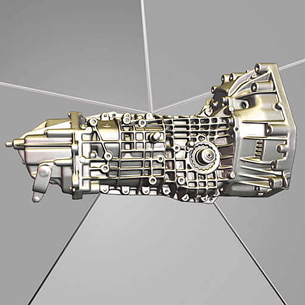

Industrial design and manufacturing

Reverse engineering
Quality control
Rapid prototyping
Aerospace

Healthcare

Orthopedics
Prosthetics
Plastic surgery
Custom wheelchairs
Dentistry
Hearing Aids

Science and education

Research
Training
Online museums
Forensic

Art and design

Heritage preservation
Architecture
CGI
Fashion

Additional Benefits

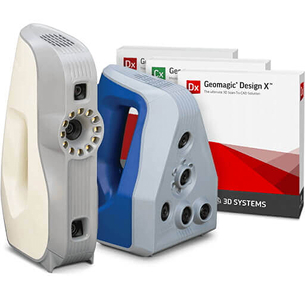

Special price for 3D software bundle

When purchasing Artec 3D scanner, enjoy special discount for 3D design and inspection software from Autodesk Manufacturing Solution, 3D System Geomagic and EGS Leios

Attractive offer for schools and universities

Education institutes are entitled to purchase Artec scanner at special EDU pricing, which includes free 20 licenses of Artec Studio 3D software, 2 years hardware warranty and software upgrades

Smart, easy scan processing software

Smart Autopilot mode in Artec Studio software provides new and experienced users the most seamless workflow to process 3D scanning data and produce reliable results. Also enjoy the fastest processing speed yet in latest Artec Studio version

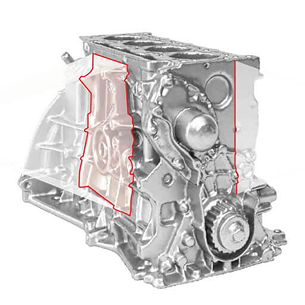

Faster 3D scanning vs. laser scanners

Artec handheld 3D scanners capture entire surface area per scan, while laser scanners capture only the small area over which the laser line pass. Artec scanners are also cost effective, portable and require no target marker pasting

Compare Artec 3D Scanners

Medium to large object 3D scan

Handheld scanner
Cableless onboard processing
VCSEL invisible structured light
Up to 80 FPS scan capture rate
3D point resolution up to 0.25mm
3D true accuracy +/- 0.1mm
Working distance 0.35m to 1.2m
Scan area up to 843 × 527 mm
Built-in touch screen control
Scan object size 0.1m to 11m+
